Random CV Generator Eurorack module / Quad Random Oscillator / Random Noise Generator - 2hp

This is the 2hp version of the Random CV Generator and contains 2 identical circuits. These can be used independently or together if the jumper on the back is soldered allowing one to cascade into the other.

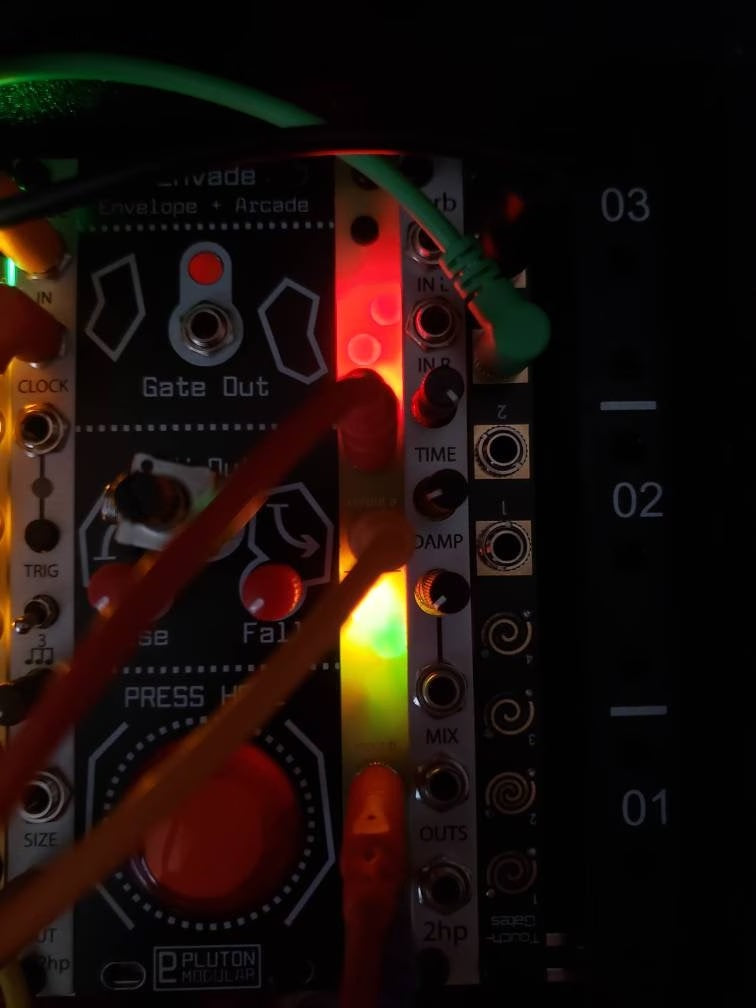

Each light indicates an oscillator, all four oscillators loop a pattern of tones and clicks that de-sync over time, turning into an unpredictable CV source. The module begins functioning around 3v when LEDs start to glow red and you get sparse clicks and tones, as CV increases you get more clicks and tones, higher cv output, as well as more colors out of the LEDs. When voltage is dropped below about 3v, all four oscillators reset and are back in sync until they fall back out of sync over time.

This module is great for a strange, mostly random trigger and CV source. It plays well with Rings and is lots of fun to feed into low-pass filters and delay.

This is a "passive" module and only needs control voltage to function, no power is taken from the rails.

See it in action here:

https://www.instagram.com/reel/Cpy3_YZj3Am/?igshid=YmMyMTA2M2Y=

https://www.instagram.com/reel/CoL8fDcDhEd/?igshid=YmMyMTA2M2Y=
