Mini Diode OR 3 to 1 Logic Gate Combiner Peak Detector Mixer Rectifier - 3.5mm - 0hp

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out

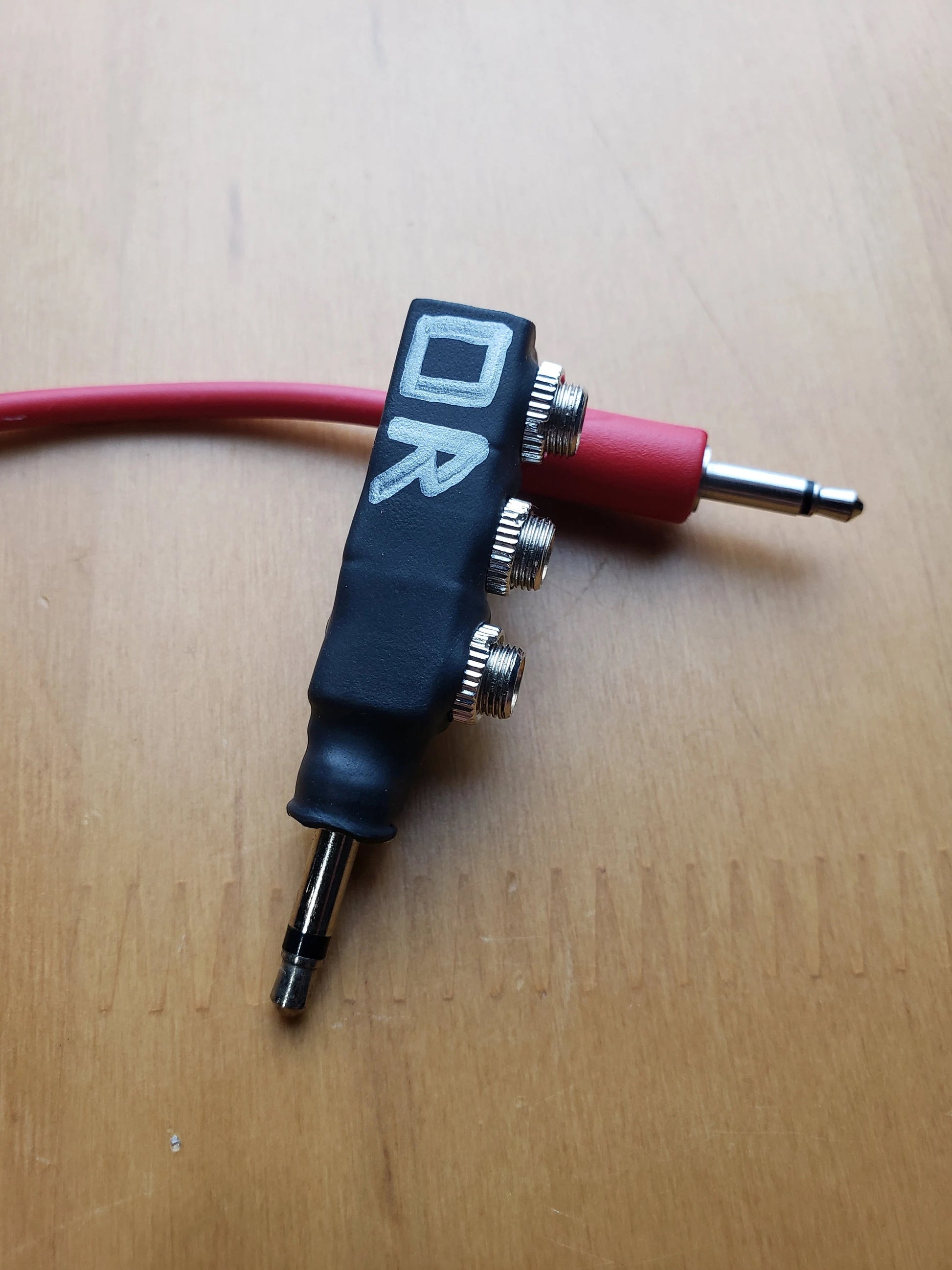

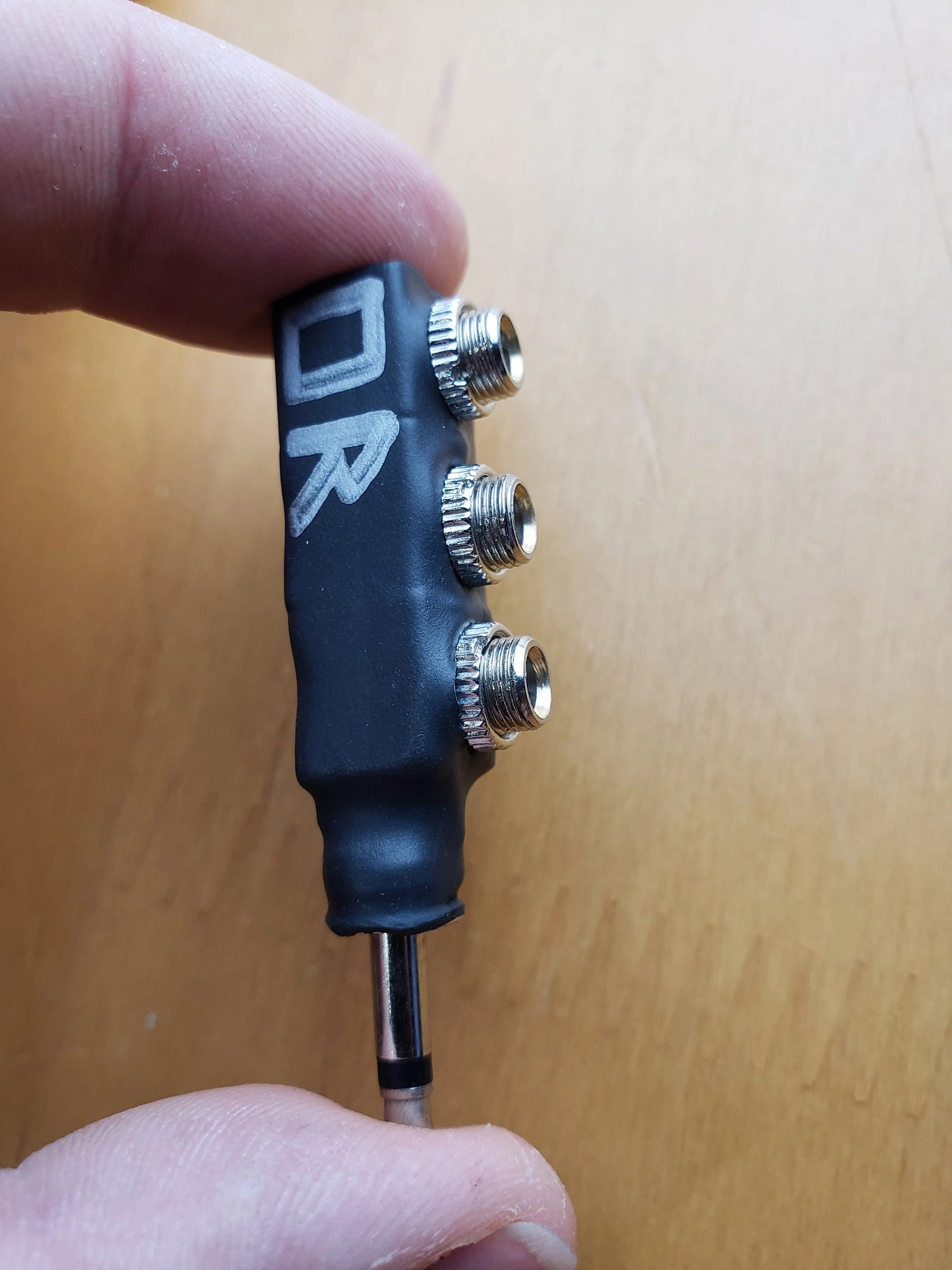

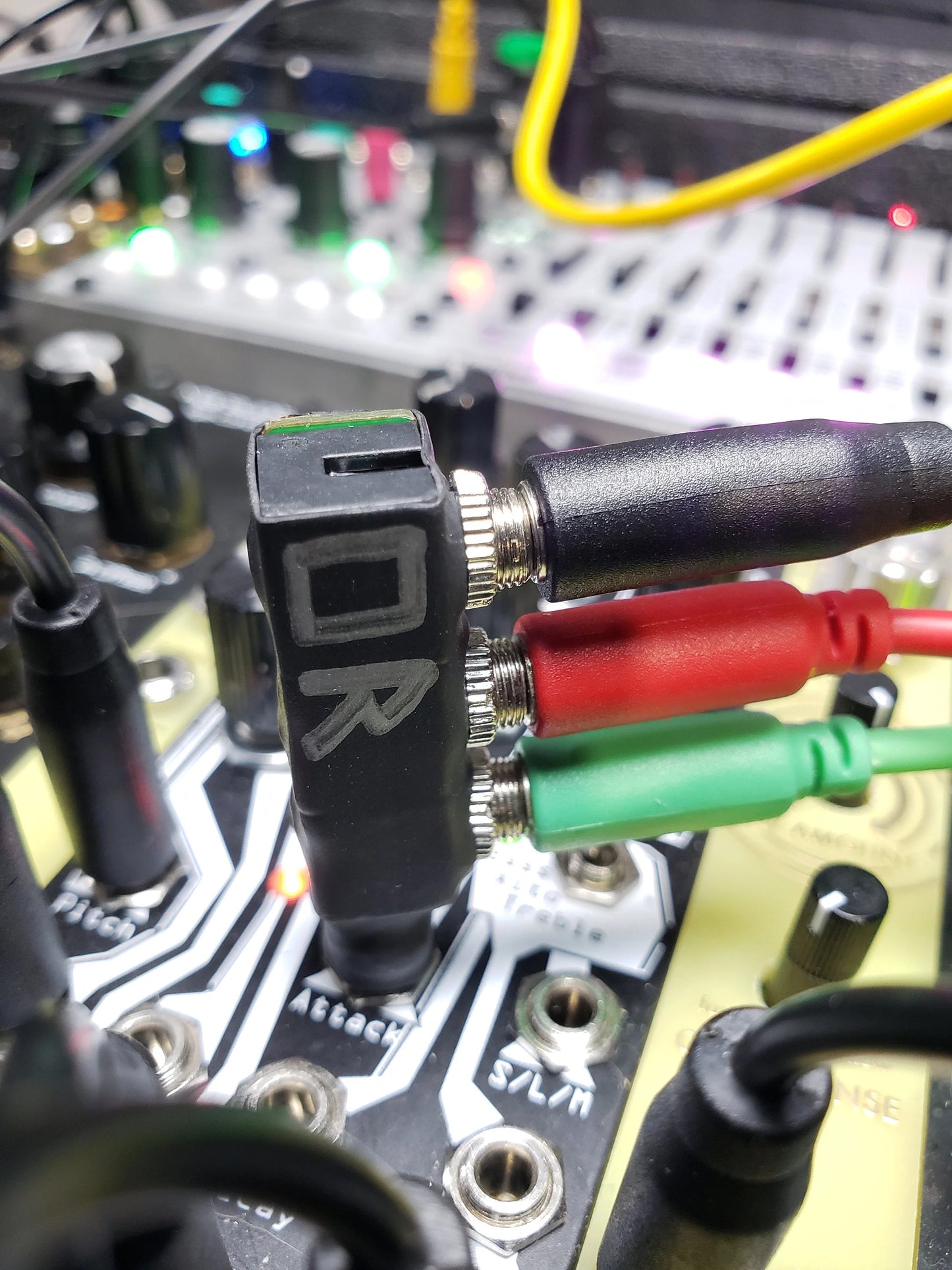

This listing is for a 0hp passive Diode OR logic Tidbit. This handy utility will take a Logic signal present at any of its three inputs and send it to the output. When no Logic HIGH input is present, this device’s output will read as 0 or Logic LOW. Perfect for mixing multiple clocks, gates, triggers and even CV!

When used with envelopes, LFOs and other “smooth” voltages, this device will act as a Peak Detector, presenting the highest input voltage at its output and ignoring the others.

Current draw: passive
Output voltage: Positive Input Voltage - 0.6V ; otherwise 0V
Input Impedance: 47kΩ
