Mini Voltage Controlled Switch / Dual VCA / Sequential Switch - 0HP

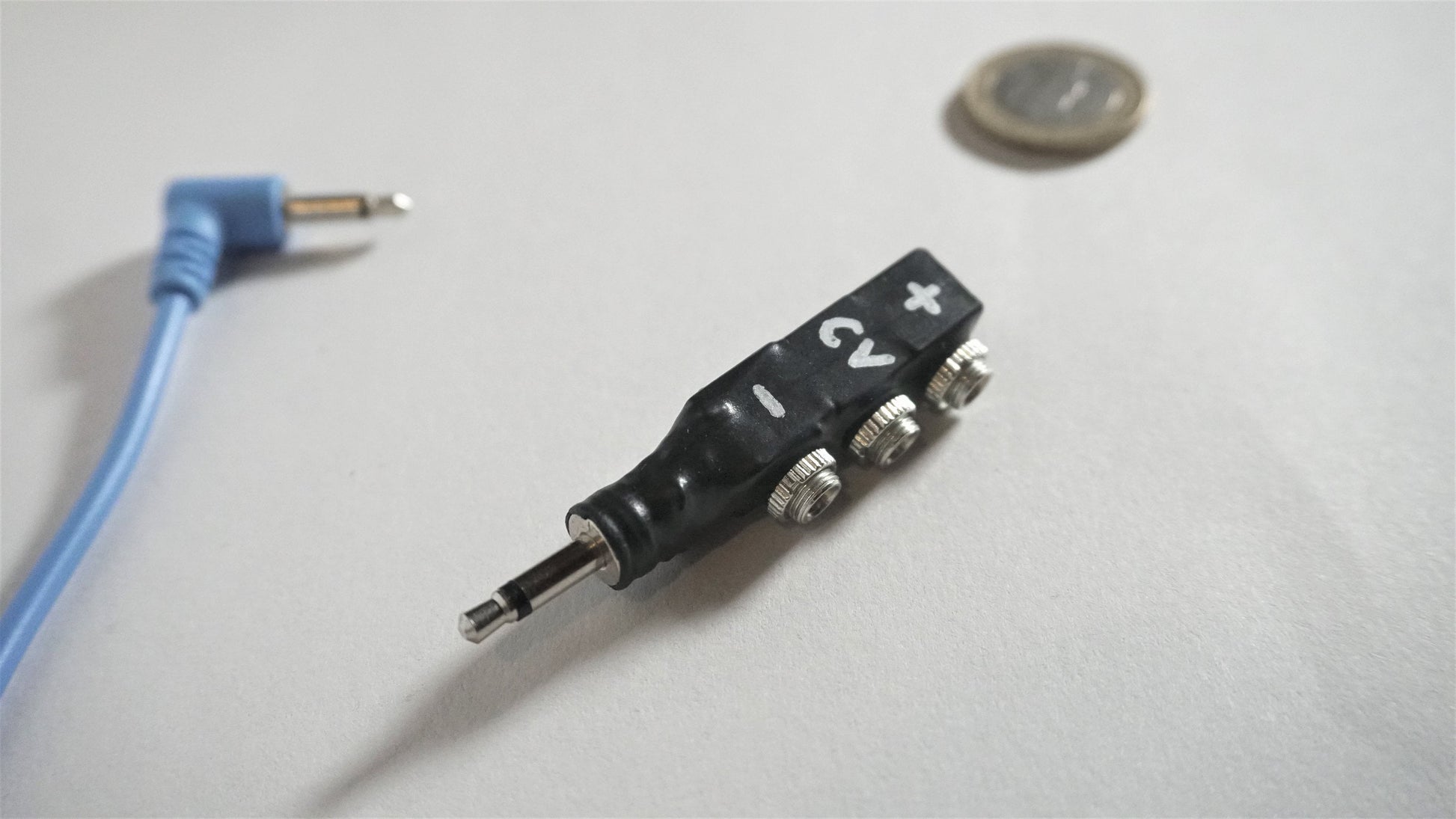

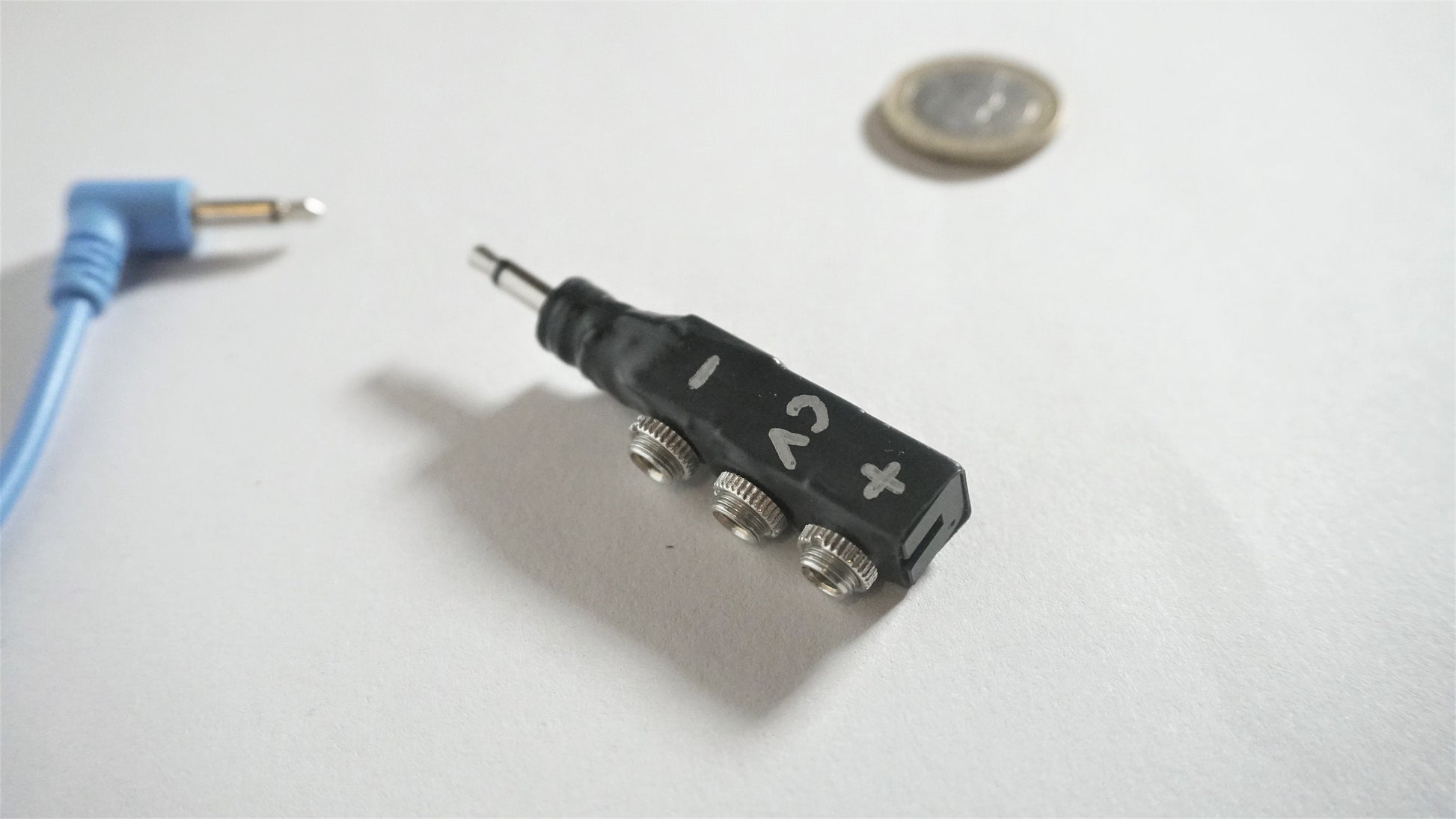

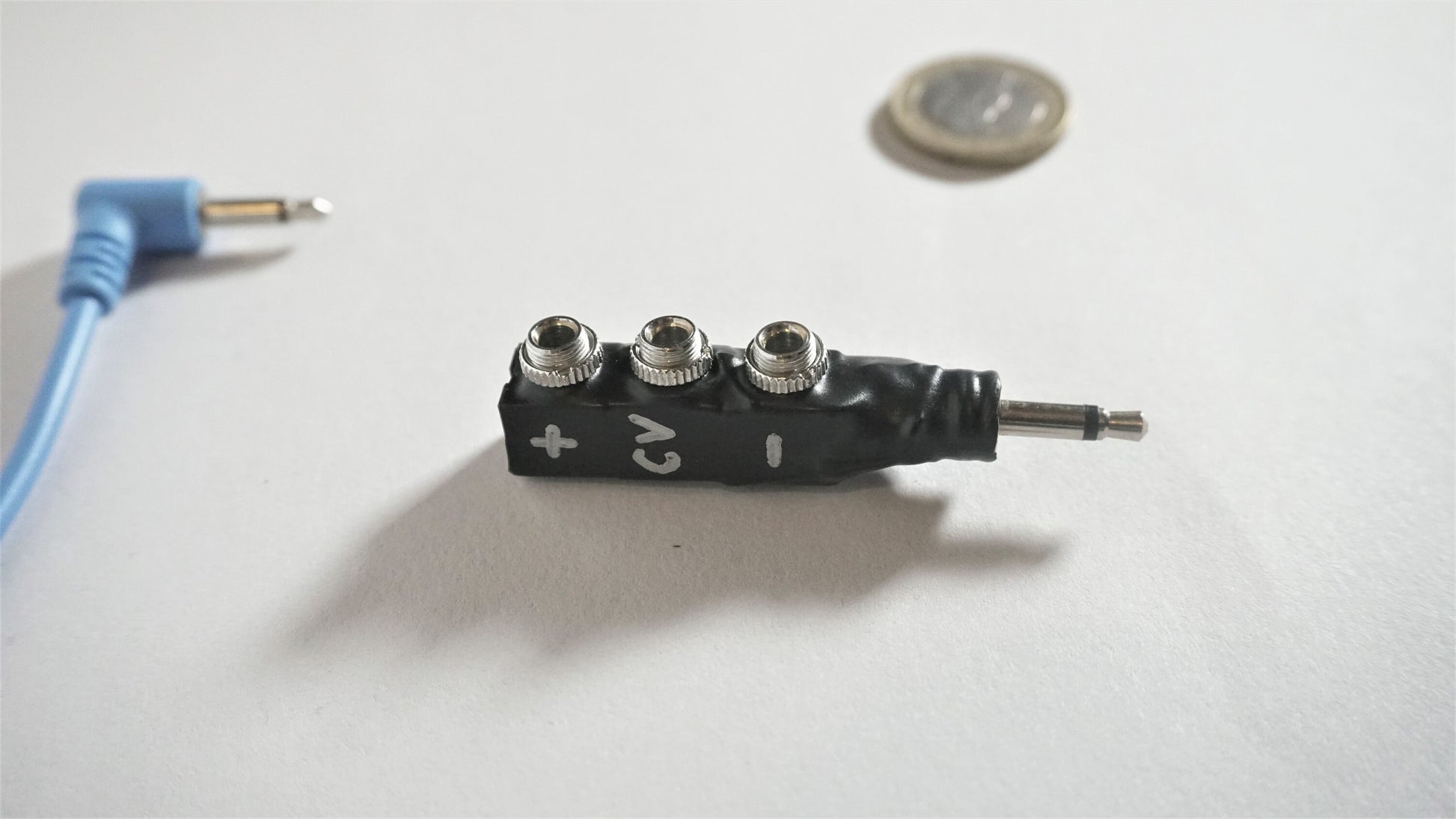

This tidbit is designed for sending two different modulation sources or voices to the same location and switching between them. Or use it as a two step sequential switch and send one modulation source or voice to two separate locations. Also fantastic for switching a trigger source between two two modules controlled by a cv source. This is essentially two combined VCAs, one using positive voltage and the other using negative voltage. Both VCAs have the same output and can be switched between with positive and negative voltage. This also works in the opposite direction, with one input and two possible outputs depending on the voltage. Control voltage is in the middle, marked "CV". When the voltage is positive, current flows through the top, when negative it flows through the bottom. If there is no CV current at all, no current can flow through either.
