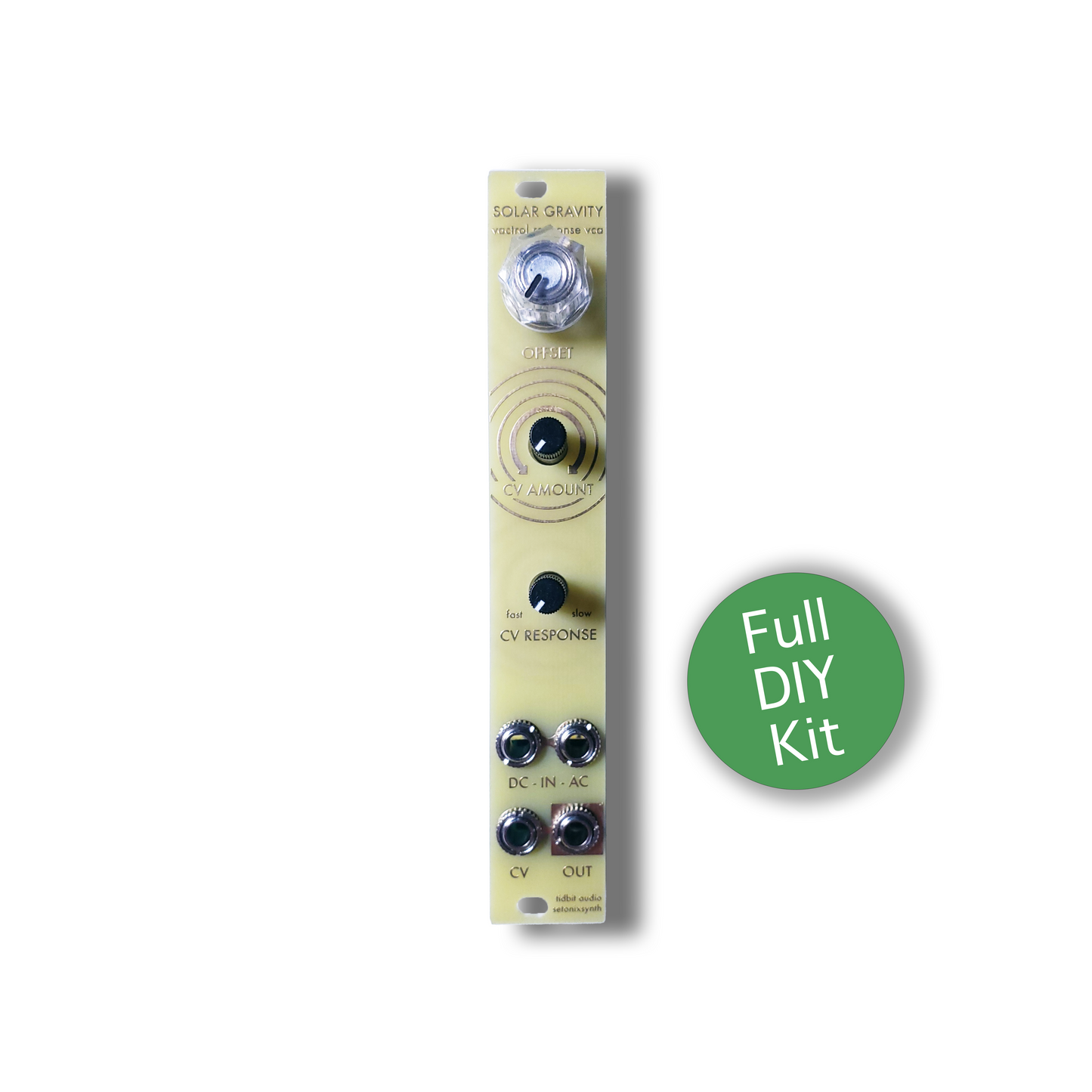

SetonixSynth Tidbit Audio Solar Gravity Vactrol VCA - Analog Eurorack Modular DIY Kit 4hp
Regular price
$55.00 USD
Regular price
Sale price
$55.00 USD
Unit price
per
Couldn't load pickup availability
The Solar Gravity is an analog vactrol-based VCA designed to bring the lovely response of optocouplers into the realm of clean, performance-based Eurorack VCAs. Starting with this simple concept, the Solar Gravity utilizes some neat active circuitry to significantly reduce the bleed inherent in vactrol-based VCAs and to provide the user with lots of control over the level, direction, and response of incoming control voltage.
Though it’s primarily designed for use with audio signals, the Solar Gravity can also be used to control the level of CV such as envelopes or stepped voltages with a unique vactrol response through its DC-coupled input.
Technical Specifications (Eurorack standard)
Width: 4hp
Depth: 28mm
Peak Current Draw: 16mA @ +12V, 18mA @ -12V
Input Impedance (All Inputs): 100kΩ
Output Impedance: 1kΩ
AC Input Cutoff Frequency (-3dB High Pass): 5 Hz approx.
Though it’s primarily designed for use with audio signals, the Solar Gravity can also be used to control the level of CV such as envelopes or stepped voltages with a unique vactrol response through its DC-coupled input.
Technical Specifications (Eurorack standard)
Width: 4hp
Depth: 28mm
Peak Current Draw: 16mA @ +12V, 18mA @ -12V
Input Impedance (All Inputs): 100kΩ
Output Impedance: 1kΩ
AC Input Cutoff Frequency (-3dB High Pass): 5 Hz approx.
